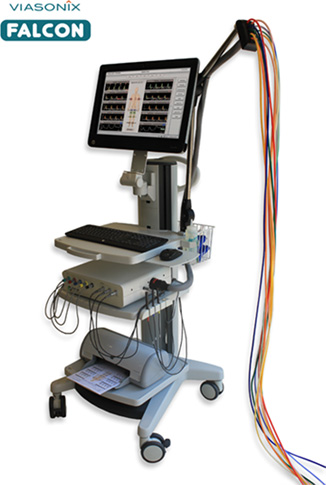

Falcon Peripheral Vascular Diagnosis System Surgi-Med

Peripheral Vascular Diagnosis that Makes a Difference

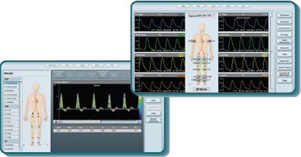

Advanced State-Of-The-Art Technology IPU technology provides reliability and high durability Ultimate configuration flexibility Full color Doppler spectral display Simultaneous measurements for time effectiveness Camera connection for documenting pathologies Cybersecurity compliance

Unmatched User Friendly Operation One Key Operation Designed for Touch Screen Unlimited Flexible Protocols Configurable Display Layout Color coded Tubes and Sensors Flexible Reporting Formats Language Support

Time Saving Options Automatic Examination Modes Auto-Inflate Option Auto-detection of systolic pressures Auto-Target Pressure Auto-Save for all measurements

Complete Network Solution Practically Plug-and-Play DICOM operation DICOM (PACS) Worklist and Storage Programmable Structured Reporting HL7 Interface GDT Connectivity Unlimited Review Stations Shared network database via SQL

Ideal Research Solutions Variety of export formats including Raw Data PVR Analysis Built in statistics tool Informative charts and comparisons Data mining

Clinical Applications & Specialty Tests Segmental Blood Pressures (lower and upper extremities) ABI - Ankle Brachial Index TBI and FBI - Toe and Finger Brachial Index Doppler Measurements with a range of frequencies PVR - Pulse Volume Recording PPG (Photo-Plethysmograph) with a range of sensors MVO/SVC – Max Venous Outflow/Seg Venous Capacitance PWV - Pulse Wave Velocity Exercise Stress Test Venous Reflux Palmar Arch Exam / Allen Test TOS - Thoracic Outlet Syndrome Raynaud’s Syndrome Penile Function Reactive Hyperemia Popliteal Entrapment Test Arteriovenous Fistula PRT - Pulse Reappearance Time Extracranial Doppler Examinations APG - Air Plethysmography And much more …

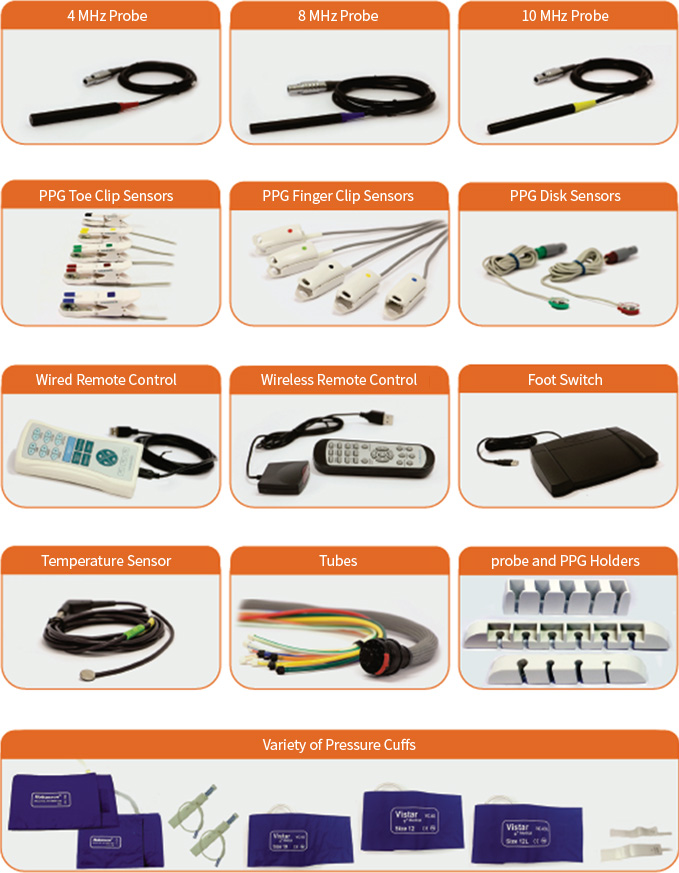

Specifications Power: 110-220 V, 50-60 Hz Weight & Dimensions: ~4 kg, 34 x 31 x 9.5 cm IPU Technology (Independent Pneumatic Units): Up to 10 Air tubes: Color coded (Up to 10 different colors) PPG Ports: 5 color coded ports (Falcon/Pro) PPG Sensors: Toe Clips, Fingerclips, Discs, all color coded Skin Temperature Sensor: Integrated sensor Pressure Cuff Sizes: Large variety of sizes Doppler Probe Connectors: 3 Doppler Frequencies: 4 MHz, 8 MHz, 10 MHz Doppler Technology: Complete color spectral digital Doppler Blood Pressure: With Doppler or PPG BP Deflation: Controllable 2-6 mmHg/s, pause deflation Holders: PPG sensors and Doppler probe holders Camera: USB camera support Controls: Wired/Wireless remote control, Touch screen, 3 Pedal Foot switch, Keyboard, Mouse

Surgi-Med
