DOLPHIN Transcranial Doppler Product Line
-
The Ultimate TCD Standalone System

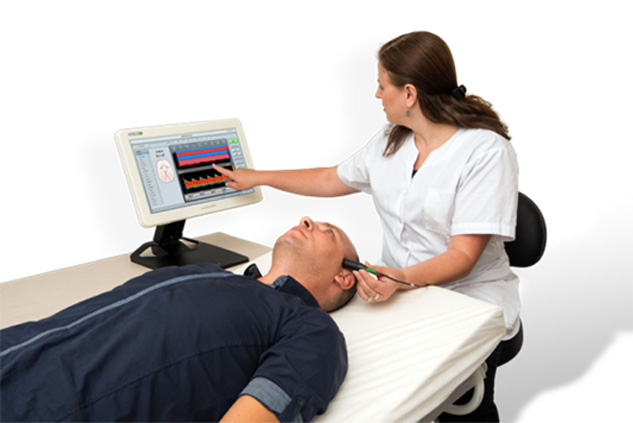

Complete stand-alone system
Integrated computer and display
Dimensions : 47x30x7cm
Weight : 6kg
- ■ Integrated computer ■18” Wide Screen ■Touch screen
- High Quality Doppler
Fully digital Doppler processing
High resolution color M Mode
Visual and audio Replay at any depth
- Highly Advanced Doppler Processing
Spectrum, M Mode & Sound replay at any depth
Complete Raw Data for post processing
Multi Depth support
Velocity Profile diagnosis
- Friendly User Interface
One Key Operation
Designed for Touch Screen
Unlimited Flexible Protocols
Configurable Display
Dynamic Reporting
Language support
- Advanced HITS Detection
Fast and thorough review of all HITS
High resolution HITS M-Mode display
Distribution charts
Complex & Energy graphs
- Wide Range of Clinical Application
Vasospasm and SAH
HITS Detection and Analysis
Monitoring
PFO – Patent Foramen Ovale
VMR – Vasomotor Reactivity
Autoregulation
Intracranial Stenosis
Collateral Capacity
Arteriovenous Malformation
Extracranial Tests
Brain Death
Sickle Cell Disease
Evaluation of ICP Changes
Breath Holding
Evoked Flow
Cognitive Response
Peripheral Doppler
And more
-
Emboli over spectrum
High Resolution Power M Mode display shows
Emboli traveling along the blood vessel Typical display off an artifact
- Specifications
Power: 110-220 V, 50-60 Hz
Dolphin/MAX Battery Operation Time: Up to 6 hours
Doppler Frequencies: 2 MHz, 1.6 MHz, 4 MHz, 8 MHz
Intraoperative: 16 MHz (Not for USA & Canada)
Probe Connectors: 5
Operating System: Windows 7/8.1/10 (32 or 64 bit)
Unilateral/Bilateral: Supported
CW/PW Probes: Supported for 4 Mhz, 8 Mhz
FFT Size Options: 64/128/256/512
Probe Holder: Integrated
Controls: Wired/Wireless remote control, Touch screen,
Foot switch, Keyboard, Mouse
Screen: 18” Wide Screen LED with capacitive Multi Touch screen
VESA mount: Built in
CPU: Quad Core 2 GHz
RAM: 4 GB
Hard Drive: Western Digital 1 TB high performance
USB Connection: x4, USB 3.0
Network: Ethernet
Speakers: Integrated
