Trasncranial Doppler System Surgi-Med

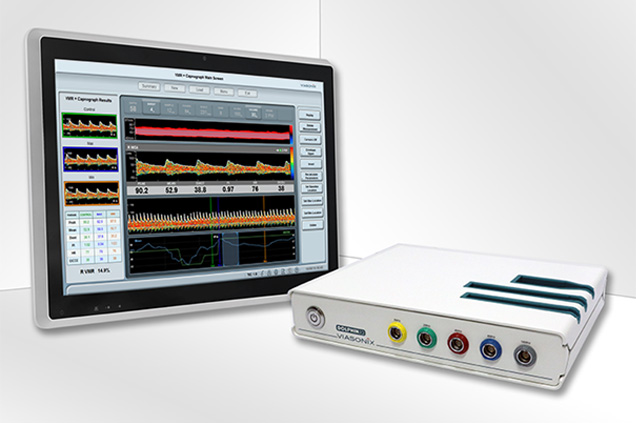

DOLPHIN Transcranial Doppler Product Line

High Quality Doppler Fully digital Doppler processing High resolution color M Mode Visual and audio Replay at any depth

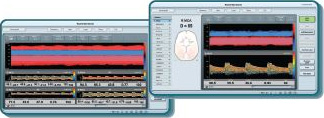

Highly Advanced Doppler Processing Spectrum, M Mode & Sound replay at any depth Complete Raw Data for post processing Multi Depth support Velocity Profile diagnosis

Friendly User Interface One Key Operation Designed for Touch Screen Unlimited Flexible Protocols Configurable Display Dynamic Reporting Language support

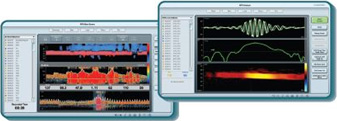

Advanced HITS Detection Fast and thorough review of all HITS High resolution HITS M-Mode display Distribution charts Complex & Energy graphs

Wide Range of Clinical Application Vasospasm and SAH HITS Detection and Analysis Monitoring PFO – Patent Foramen Ovale VMR – Vasomotor Reactivity Autoregulation Intracranial Stenosis Collateral Capacity Arteriovenous Malformation Extracranial Tests Brain Death Sickle Cell Disease Evaluation of ICP Changes Breath Holding Evoked Flow Cognitive Response Peripheral Doppler And more: Emboli over spectrum High Resolution Power M Mode display shows
Emboli traveling along the blood vessel Typical display off an artifact

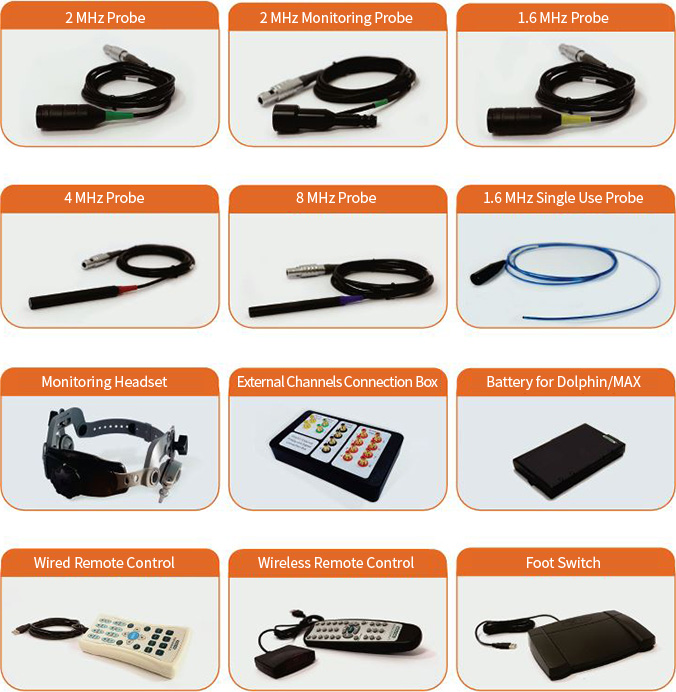

Specifications Power: 110-220 V, 50-60 Hz Dolphin/MAX Battery Operation Time: Up to 6 hours Doppler Frequencies: 2 MHz, 1.6 MHz, 4 MHz, 8 MHz Intraoperative: 16 MHz (Not for USA & Canada) Probe Connectors: 5 Operating System: Windows 7/8.1/10 (32 or 64 bit) Unilateral/Bilateral: Supported CW/PW Probes: Supported for 4 Mhz, 8 Mhz FFT Size Options: 64/128/256/512 Probe Holder: Integrated Controls: Wired/Wireless remote control, Touch screen, Foot switch, Keyboard, Mouse
